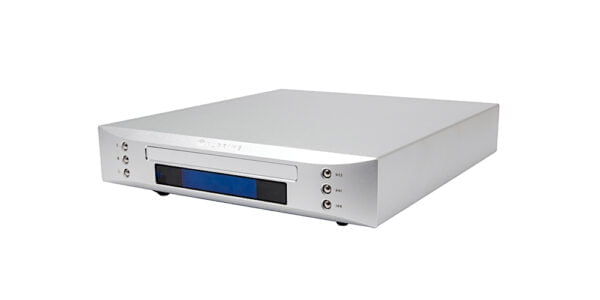

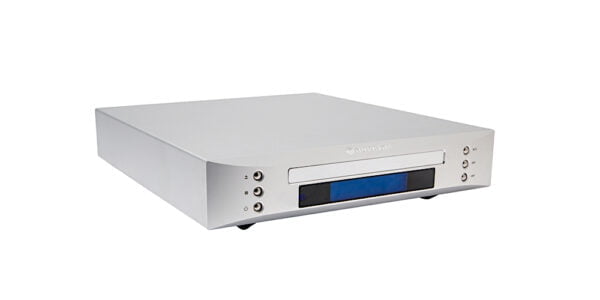

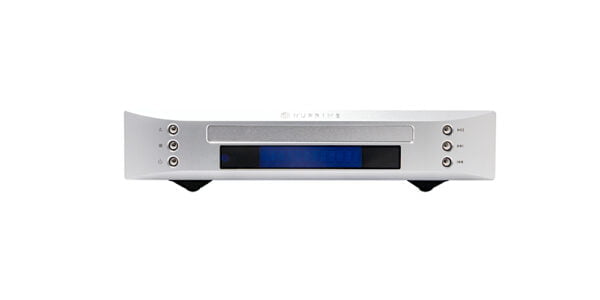

NuPrime CDT-9


The NuPrime CDT-9 is a highly accurate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) up samples the CD format to higher sampling rate with ultra-low jitter and distortion.



The CDT-9 Transport comes with features that enable it to out perform all CD transports in its price range.

Highly Accurate CD Playback

  • A powerful ARM chip LPC2103F CD reads, writes and controls error correction

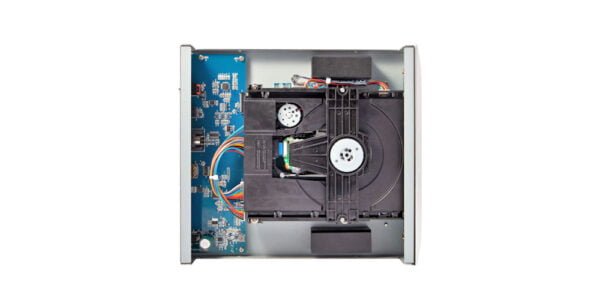

  • Philips SAA7824HL high-end laser reads/writes head control and decodes chips for CD transport. The transport and laser assembly is a Sony KHM-313.
  • Supports CD-DA CD-R, CD-RW format
  • Algorithm reduces digital interference resulting in extremely low jitter
  • Coaxial output with a dedicated isolation transformer
  • Low jitter I2S output for professional use

Sampling Rate Converter

  • The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
  • The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

  • Custom R-type professional transformer with shielding
  • Low power consumption in Standby Mode•
  • NuPrime vibration-free isolation feet
  • High quality aluminium remote control

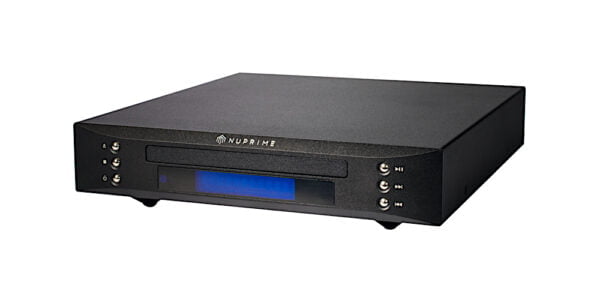

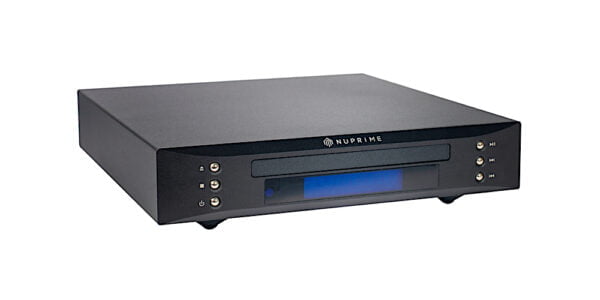

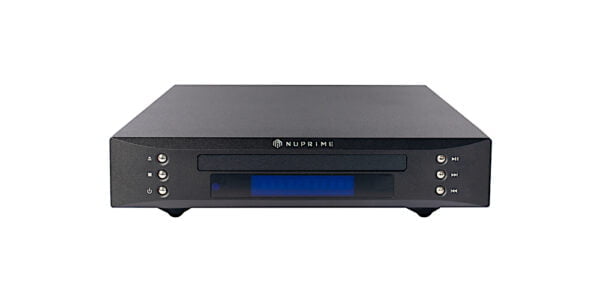

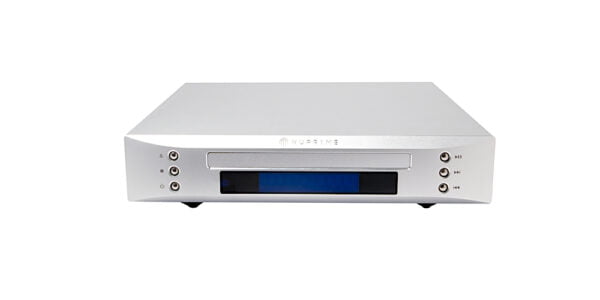

  • Available in black or silver anodized aluminum finish
  • External AC adapter included
  • Bundled with LPS-212 for $1450 (recommended option)

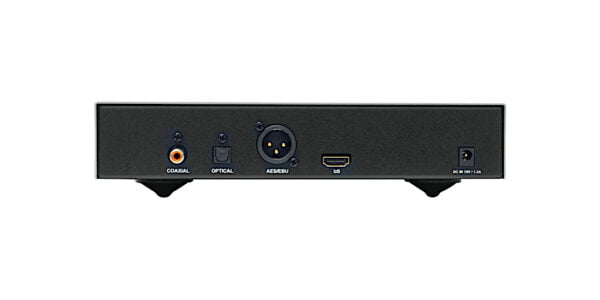

Outputs:

  • Optical Output  (up to 24  bits  /  192 kHz) (DoP64)
  • Coaxial Output  (up to 24 bits  /  768KHz) (DoP256)
  • HDMI I2S* Output (up to 24 bits  /  768KHz) (DoP256)
  • AES / EBU Output (up to 24 bits  /  768KHz) (DoP256)

*Note that the I2S output is for connecting with other NuPrime products and may not work with other devices.



Specifications

  • Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, DoP64
  • Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • Bit Resolution: 24-bits
  • Dimensions: 235 mm W x 260 mm D x 55 mm H (including feet). The CD transport is 20.5mm from the edge of the case.
  • AC Fuse: Slow-blow, 1A, 250VA
  • Worldwide AC voltage: 100VAC~240VAC
