NuPrime CDT-10

CDT-10 Design Philosophy & CDT-8 Pro Comparison

CDT-10 extends the exceptional digital design of CDT-8 Pro with enhanced AC noise filter (inherited from Evolution DAC) and power circuit. But to be considered as the ultimate CD transport, CDT-10 design philosophy is to minimize every possible mechanical vibration. The CDT-10 chassis design has similar structural integrity as a submarine (tubular structure with vertical & longitudinal rigidness) evenly distribute vibration. The transport mechanism is further sandwiched with aluminum plates to reduce vibration.

Features

Highly Accurate CD Playback And Digital Outputs

• A powerful ARM chip LPC2103F CD reads, writes and controls error correction
• Philips SAA7824HL high-end laser reads/writes head control and decodes chips
• Supports CD-DA CD-R, CD-RW
• Algorithm reduces digital interference resulting in extremely low jitter

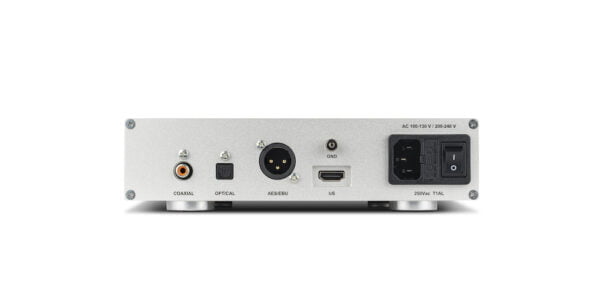

• Coaxial output with a dedicated isolation transformer

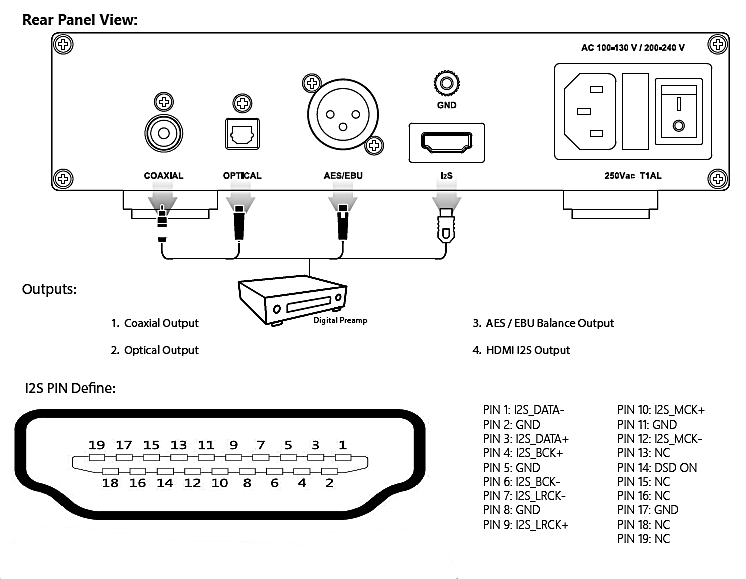

• Low jitter I2S output for professional use

Sampling Rate Converter

• The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to
• 768kHz or DoP256
• The conversion is achieved by up-sampling to mega hertz before down converting to
• the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

• Custom R-type professional transformer with shielding
• Low power consumption in Standby Mode

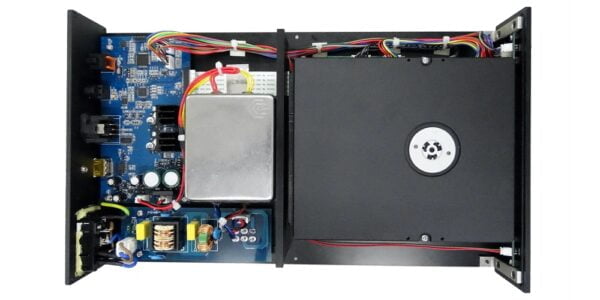

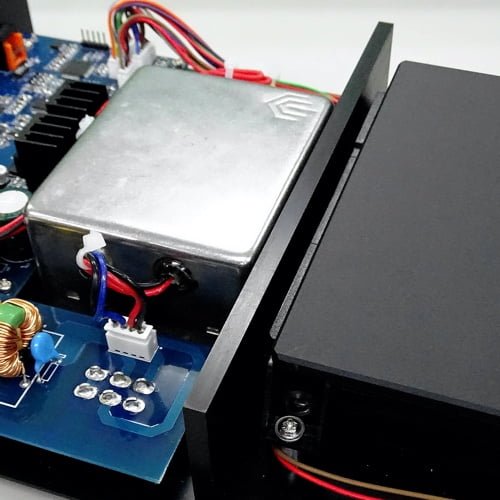

• Isolation shielding of CD transport from electronics and power supply

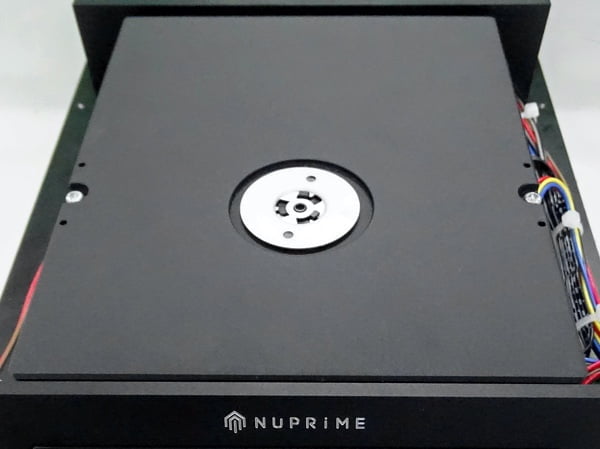

• CD transport stabilizing design

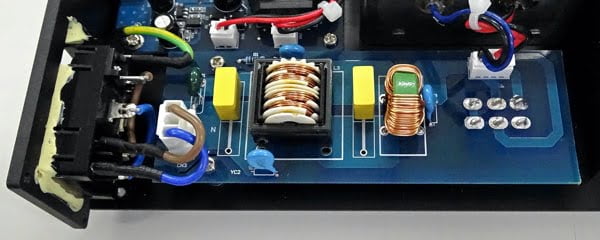

• AC filter

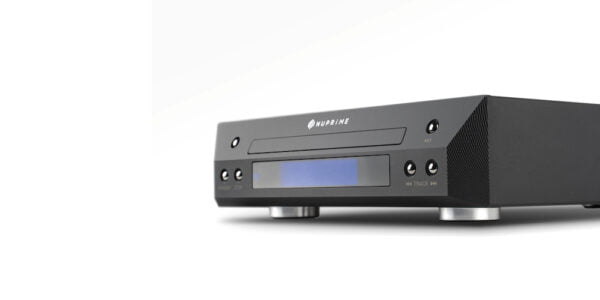

• NuPrime vibration-free isolation feet
• High quality aluminium remote control

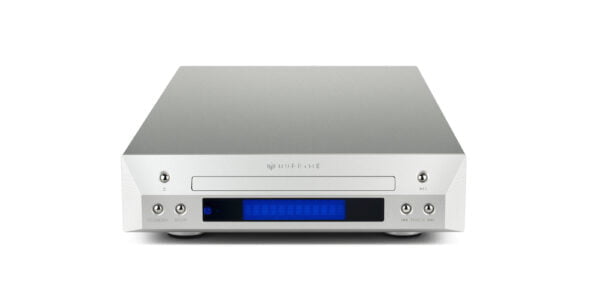

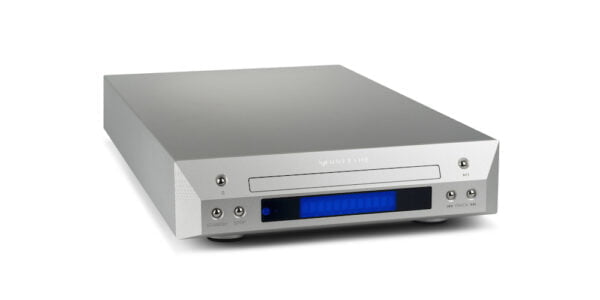

• Available in black or silver anodized aluminium finish
