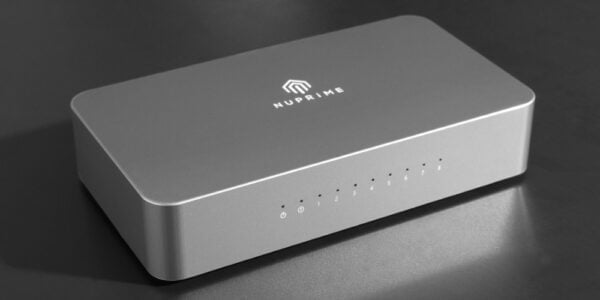

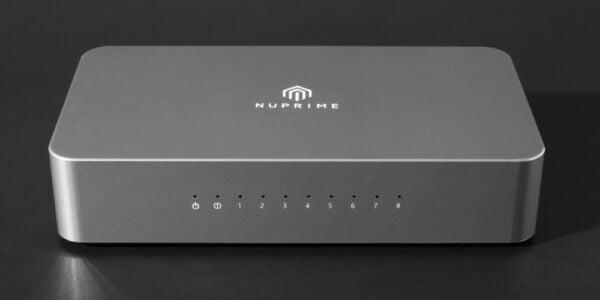

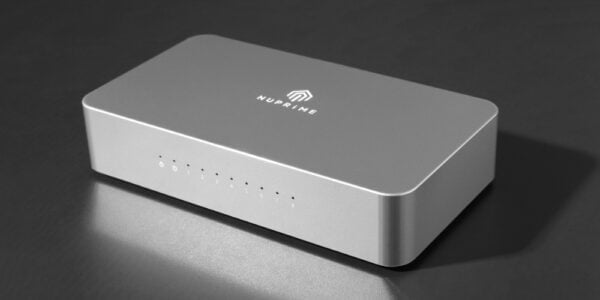

NuPrime SW-8

NuPrime licenses Omnia SW-8 from Thunder Data Co. Ltd., maker of Bonn N8. Omnia SW-8 differs from Bonn N8 with an upgraded low noise power supply and aluminum chassis.

Features

• Eight AUDIO GRADE 100 / 1000 Base-T Gigabit Ethernet Ports
• Superior main clock accuracy
• Customized Silent Angel Noise Absorber (SANA)
• Two noise isolator for main power circuit
• Two noise isolator for clock generator circuit
• Medical Grade power adaptor

Precise Control Of Clock Signal

TCXO (Temperature Compensation crystal Oscillator)

The heart of Omnia SW-8 is a customized TCXO with an extreme accuracy of 0.1ppm, much higher than a standard TCXO. The result is a more accurate network signal and stable music data transmission.

Main Circuit Board

• Two electrical noise isolation circuits, with noise rejection rate 17dB, for power circuit.
• Two electrical noise isolation circuits, with noise rejection rate 20dB, for clock generation circuit.
• This noise isolation circuit ensures Omnia SW-8 to generate stable network signals.

High Permeability EMI Absorber

The Omnia SW-8 utilizes EMI absorber at the inner side of the bottom case to further reduce circuit noise.

Result In Jitter Improvement

The quality of network signal from Omnia SW-8 is 90% better than that of a general switch in jitter measurements.

Regular Home Switches jitter is as high as 705 ps.

Omnia SW-8 jitter is much lower (369 ps)

Recommended Setup

For best performance, connect Omnia SW-8 to the router and all network audio components to Omnia SW-8.
